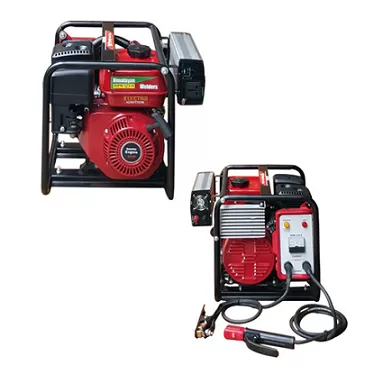

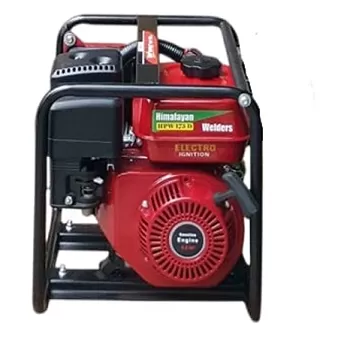

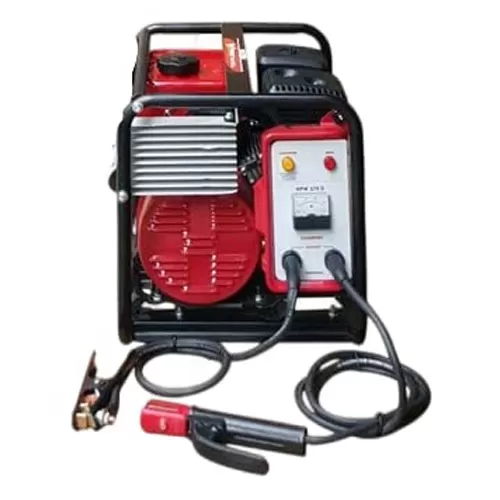

HPM 1KV Recoil Petrol Welder Generator

HPM 1KV Recoil Petrol Welder Generator

Specifications :

• Model Name : HPW-175-D
• Brand :HPM
• Maximum Output (Duty Cycle 60%) : 175 Amps.
• Working Voltazge : 20v to 30 v
• Open Circuit Voltage : 50 Volt (Maximum)
• Current Regulation Amps : 75 Amps to 160 Amps
• Rectifying Mode : 3 phase – Bridge Rectifier (Full Wave)
• Maximum Electrode diameter : 2.5 mm to 4 mm

Engine

• Model : HM170 P
• Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
• Maximum Power (Duty Cycle 60%) : 6.5 HP
• Bore x Stroke : 70 x 54
• Displacement : 208 cc
• Starting System : Recoil Start
• Fuel : Standard Petrol
  Fuel Consumption : 500-600ml/hr
• Fuel Tank Capacity : 3.6 Ltr
• Continuous Operating Hour : 3.5 Hrs
• Lube. Oil Capacity : 600ml
• Lubricating Oil Consumption : 2.5 gm./Hr.

Panel & Other Standard Features

• Aux. AC Output 230 Volt – 50 Hz : Invertor 1 KVA (Optional)
• Overload Protection : Yes
• Power Indicator : Yes
• Ampere Meter : Yes
• Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)

Size & Weight

• Dry Weight (Kgs.) : 27 Kgs.
• Dimension LxWxH (mm) : 440 x 385 x 420mm

Description

• HPM Heavy Duty 1Kv Powered Engine Dc Welder Cum Generators 6.5 HP, Recoil Start Ultra Light& Low Cost Arc Welding Generator Machine powered by HPM. This welding generator is suitable for General Purpose Structural Welding, Light and medium, up to 4mm Electrode.
