Heavy Duty Outboard Motor Boat Engine 2 Stroke 3.5HP

Heavy Duty Outboard Motor Boat Engine 2 Stroke 3.5HP

Specification:

★Features 360 degree steering rotation for reverse without gear shifting,Start-In-Gear protection/clutch feature prohibits prop rotation while idling

★Lift/Tilt feature for shallow water operation and convenience,Superior engine water cooling system for improved engine performance

★Easy pull off engine cover with push button latch for instant motor access,Standard CDI ignition system for easy starting and improved performance

★About the noise: all the gasoline machines are noisy, currently we did not test the decibel , but the noise is the same as the motorcycle, so it is a normal phenomenon.

★The machine itself is lightweight, it can use on boat weight of 100kg or less , load-bearing 4 people, but the speed is certainly not the same whenone person on it or 4 people on it . Customer who has high expectations on speed, please be noticed.

Description:

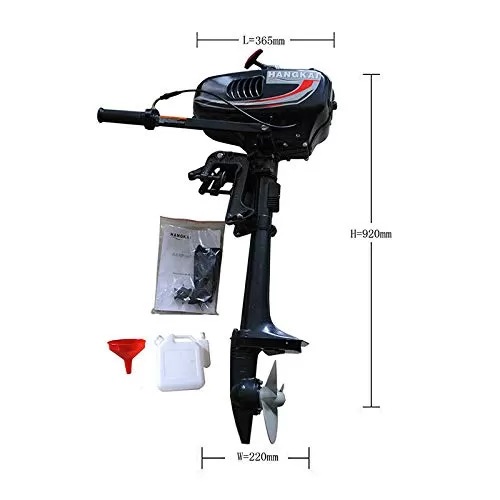

Overall length:92CM

Overall wideth:36.5cm

Overall height:22cm

Transom height:42cm

Full throttle perating range:4000-5000r/min

Maximum output:2.5kw(3.5HP)

Speed:10km/h

Type:2-stroke

Ignition system: CDI system

Starting system: Manual start

Staring carburetion system: Choke start

Propeller mark:7-1/45-A(inch)

The engine and the propeller ratio:2:1

Recommended fuel: Regular unleaded gasoline

Fuel to oil ratio: 25:1 （Please be suject to this version, and disregard the manual about this point）

Gear ratio: 27/13

Maximum speed: 10 km / h

Built-in fuel tank: 1.3L

Fuel consumption per hour: 1.5L

After in the sea water or turbid water cruising

1.Use the fresh water cleaning the outboard motor

2.With the moderate velocity circulating the engine,cool off the water chanel with fresh water.

3.Before completely running out cooling water,don’t put the outboard motor outside. Otherwise the water cam pass the exhaust port to enter the air cylinder,from that will cause the engine breakdown.

4.The engine should deposit in the aridity and ventilated well place,avoid exposing directly in the sunshine.

5.Before the long term storing,you should run out of the gasoline in the fuel tank

Warranty: 1 years
